Deployment Kits

UTS Air Rapid Response Kits

Air Rapid Response Kits (ARRK): The ARRK packages are turnkey, self-supporting deployable force support packages that can be quickly deployed or pre-positioned in remote, austere locations for use as Expeditionary Forward Operating Bases. Each ARRK kit is capable of being deployed to Full Operational Capability by as few as 8 personnel, in under 8 hours each. In turn, the ARRK kits can also be recovered and returned to their original packaged configuration for storage or relocation in under 8 hours.  The contents of the ARRK kits are all hand-transportable and can be removed (from package container), positioned, erected, recovered, and stored without the use of any Material Handling Equipment or specialty tools. The shelf life of the ARRK kits in their stored configuration is upward of 20 years, continual use service life is up to 7 years.

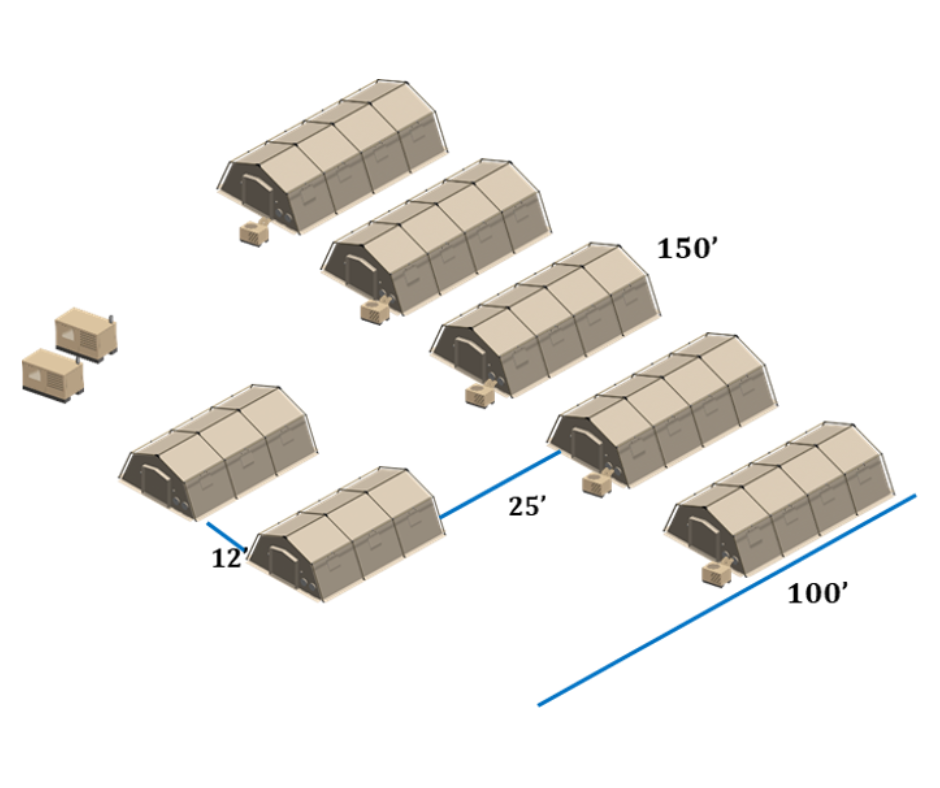

J1 - self-supporting Turnkey 100 person Bed-down

The entire J1 is a self-supporting, turnkey 100-person bed-down UTC

Includes:

  • (5) TM60 (650 sq’) billeting  shelters

  • (2)TM54 (530 sq’)Shower/Operations shelters

  • 60kW AMMPS generators/power distribution

  • Expeditionary latrines

  • Showers w/ hand washing stations

  • Area lighting, smoke detectors

  • Fire extinguishers

  • Assortment of site prep equipment, power/hand maintenance tools and housekeeping items

  • 4F9J1 100-person bed-down package comes packaged into (2) EAC90 (88”x108”x96”) shipping containers for all shelters/equipment and(1) 463L aircraft pallet for the generators - (3) aircraft pallet positions total

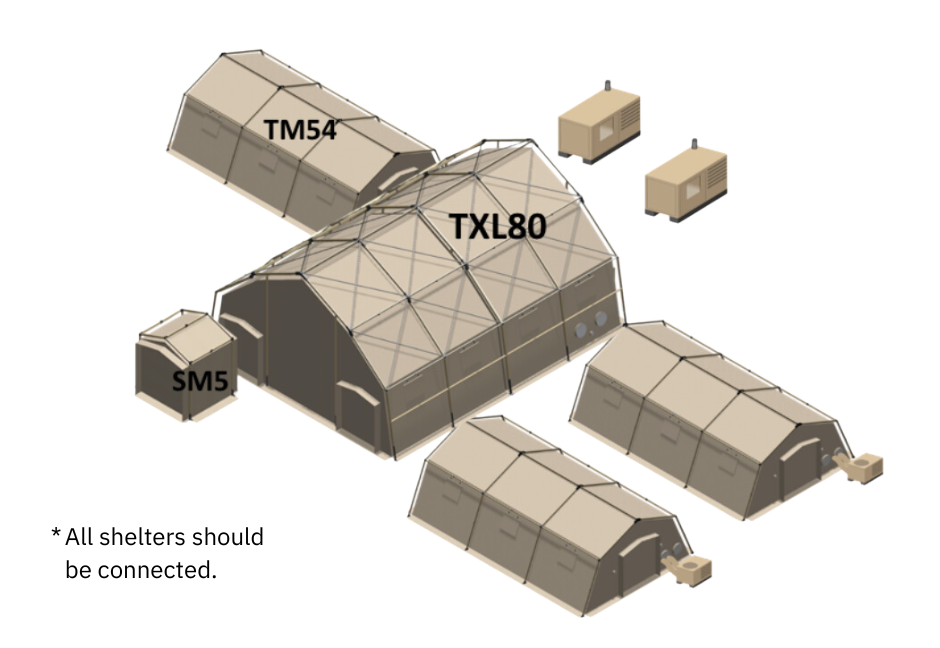

J2 – Self-supporting Command and Control (C2)

J2 – Self-supporting Command and Control (C2)

Includes

  • (1) TXL80 (950 sq’) main C2 hub shelter

  • (3) TM54 (530 sq’) connected office/workstation shelters

  • Entry Control Point vestibule

  • (2) 60kW AMMPS generators/power distribution

  • (6) Mil-Spec ECU’s

  • (3) AV display (projector) systems, prewired power/switches tactical tables (NIPR/SIPR/JWICS compatible) w/ appropriate CAT6 cabling

  • Hard flooring w/ cable mgmt tracks, coffee pot, mini fridge, microwave, smoke detectors, fire extinguishers and an assortment of power/hand maintenance tools and housekeeping items.

  • The entire 4F9J2 C2 package comes packaged into (2) EAC90 (88”x108”x96”) shipping containers for all shelters/equipment, (1) 463L aircraft pallet for the generators and (1) 463L aircraft pallet for hard flooring - (4) aircraft pallet positions total

J3 – HVAC Support

The main objective of the J3 HVAC Support kit is to provide the J1 100-Person Beddown kit with HVAC assets while simultaneously providing power redundancy in the event of enemy attack, natural disaster and/or unforeseen asset inoperability.

J4 – Fuel storage

The function of the J4 Fuel Support Kit is to provide extended operability of ARRK kit fuel consuming equipment, such as:

  • Generators

  • Shower/Shave Water Heaters

  • 175K BTU Cold Weather Heaters, and/or ARRK support equipment operations.

The J4 Fuel Support kit works in tandem with all ARRK (Air Rapid Response Kits) fuel consuming assets to include:

  • J1 - 100-Person Beddown kit

  • J2 - Command and Control suite

  • J3 - HVAC (Heating, Ventilation, and Air Conditioning) Support kit

  • J5 - Water Purification Package

  • J7 - Cold Weather Package.

J5 – Water Purification Kit

Includes:

  • Aspen 2000 DM Desalinization reverse osmosis water purification unit

  • The 2000 DM is a self-contained, Desalination Water purification unit which may be powered by either 100-260 vac or 24-28 vdc and can produce up to 1500 gallons (about 5678.12 L) per day potable water from salt-water source or 2000 gallons (about 7570.82 L) per day of potable water from a fresh water source

  • The 2000 DM internal flush tank holds 15 gallons of water, self-priming supply pump, water testing equipment, replacement water filters/consumables

  • (1) TM36 (400sq’) shelter for a work cente

  • The 2000 DM Water Purification on package comes complete in (1) EAC90 (88”x108”x96”) shipping container
